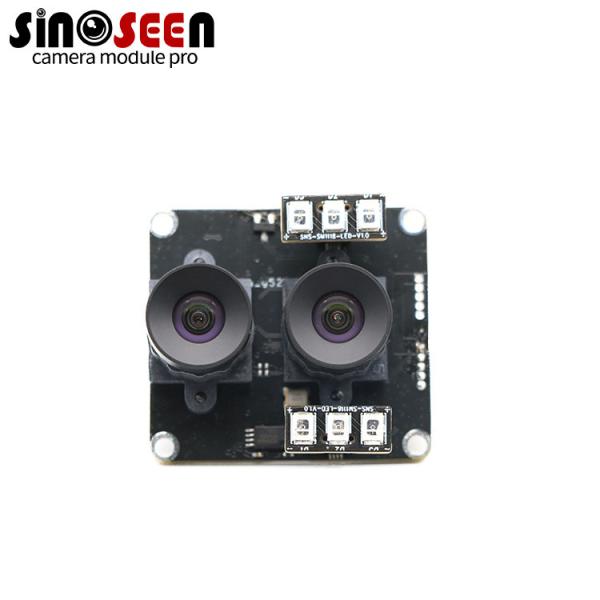

    Dual Lens 2MP Camera Module With Fill Light And USB Interface For Enhanced Functionality

    Ask Lasest Price
    Brand Name : Sinoseen
    Model Number : SNS-SM1118-V1.0
    Certification : RoHS
    Price : negotiable
    Payment Terms : T/T
    Supply Ability : 500000 pieces/month
    Delivery Time : 2-3weeks
    • Product Details
    • Company Profile

    Dual Lens 2MP Camera Module With Fill Light And USB Interface For Enhanced Functionality

    2MP Dual Lens Camera Module With Fill Light And USB Interface For Enhanced Functionality​


    2MP USB Camera Module

    The camera module's dual-lens design includes two separate lenses, each with its own sensor. This configuration allows images to be captured simultaneously or independently, providing the flexibility to capture different perspectives or apply different effects. The inclusion of a fill light in the camera module improves image quality in low-light environments. Fill light provides additional illumination to ensure your subject is well-lit, reducing shadows and increasing visibility. This feature is particularly useful in applications such as video conferencing, live streaming, or low-light photography.
    USB interface allows easy connection to host devices. The USB interface provides a convenient and widely compatible connection method, allowing the camera module to be easily integrated into various devices such as computers, laptops, tablets or embedded systems.
    The combination of dual lenses, fill light, and USB port provides enhanced functionality and flexibility for capturing images and video. It delivers higher image quality in challenging lighting conditions and integrates seamlessly with a variety of devices.

    Specification

    Model No

    SNS-SM1118-V1.0

    Sensor

    1/3’GC2083 CMOS

    Pixel

    2 Mega Pixel

    Most effective pixels

    H1920*V1080

    Pixel Size

    2.7um x2.7um

    Image Area

    5808µm x 3288µm

    Compression format

    YUV2 / MJPG

    Resolution

    See above

    Frame rate

    See above

    Shutter Type

    Electronic rolling shutter

    Focus type

    Fixed focus

    S/N ratio

    TBDdB

    Dynamic range

    TBDdB

    Sensitivity

    3700 mV/lux-sec

    Interface type

    USB2.0


    Adjustable parameter

    Brightness/Contrast/Color saturation/Hue/Definition/
    Gamma/White balance/Exposure

    Power supply requirement

    AVDD28: 2.7~3.3V(Typ.2.8V)

    DVDD18: 1.15~1.3V(Typ.1.2V)

    IOVDD: 1.7~3.0V(Typ.1.8V)

    Audio frequency

    Optional

    Power supply

    USB BUS POWER

    Power consumption

    DC 5V, 200mA

    Main chip

    DSP/SENSOR/FLASH

    Auto Exposure Control (AEC)

    Support

    Auto White Balance (AEB)

    Support

    Auto Gain Control (AGC)

    Support

    Storage temperature

    0~60℃

    Operating temperature

    -20~80℃

    USB cable length

    Default

    Support OS

    WinXP/Vista/Win7/Win8/Win10
    Linux with UVC(above linux-2.6.26)
    MAC-OS X 10.4.8 or later
    Android 4.0 or above with UVC
